automatic production line license plate japan servo License plate
production line
Automatic production line license plate.pdf
Main Features

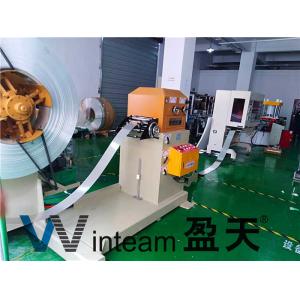

1. Strips were payoff and feed to power press and then Number plate was blanked etc automatically.
2. Straightener and plastic film covering device were combined in
one machine, full automatically and saving space.
3. Press feeder adopted NC SERVO ROLL FEEDER. Feeding length is no
limited, feeding speed is fast and feeding tolerance is precious.

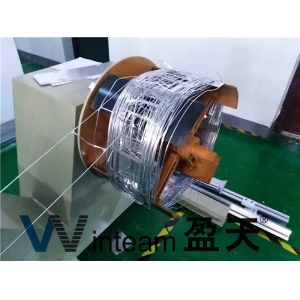

4.Scrap strips were rolled in coil automatically.
Feature and advantage
1. Save factory space. 2 machines (decoiler straightener) together
in one.
2. High feeding precision: +/-0.05mm
3. Suitable for material thickness: 0.2-3.2mm.
4. Suitable for all kinds of metal coil automatic straightening and
feeding, easy to operate.
5. Suitable for metal parts, electron, electrical appliance, toy
and auto parts continuous
pressing production, straightening and feeding.
6. Japan servo motor, PLC and other electrical parts, with little
malfunction and long using
time. High quality, lowest maintenance.
7. Can feed different length at the time, easy operation, safe and
high stability.
8. We can customize the machine.
9. Fast speed: 20m/min.
10. Coil car , pressing arm, conveyer belt , shearing machine ,
oiling machine etc. for
choosing.
Terms and Conditions:
- Payment terms: 60% T/T prepay,40% when you see the copy of B/L
- Packing: Export Wooden case.
- Delivery: N.A. work days from date of contract signing (down
payment)
- Validity: 180 days from the day quoted.
- Guarantee period: 12 months
Parameter
| main parameter |
| length | 10-12m |
| produce speed | 25-30pc/min |
| total power | 12kw |
| suppier | 3ph 380v 50hz |
| discharge and leveling machine |
| size(mm) | 1900*900*1350 |
| power | 1.5kw |
| loading | 400kg |
| past foils machine |
| size(mm) | 1500*870*1800 |
| power | 1.8kw |
| loading | 30kg foils |
| Correction | automatic |
| feeder |
| size(mm) | 1170*530*1200 |
| power | 2.3kw |
| die cutting |
| size(mm) | 1250*1500*2600 |
| pressure | 60T |
| produce speed | 25-30pc/min |
| recycle |
| size(mm) | 1800*750*1100 |
| power | 0.75kw |
| loading | 400kg |
Q: Do all products have English operating interfaces and operating
manuals?A:Yes, all our equipment has English operation interfaces, and if
necessary, we are also able to provide the edition in the user's
native language, and all products are available in English
operating instructions; if necessary, we can also provide the
user's desired language version.
In addition, there are are operating videos for our products for
the convenience of customers to use.
Q: How is the after-sales service of your company?
A:We offer quality guarantee for all the products, and for products
within the warranty period, we provide free services for all
damages not resulting from human beings. After the warranty
expires, we will charge cost price only
Q: What is your MOQ of the spray dryer?
A:1 set.
Q: How long is your delivery time of spray dryer?
A: Generally it is depending on order quantity.The specific time can be negotiated.
Q: How to choose suitable spray dryer?
A:tell us your work flow and requirements ,then we will recommend
you suitable equipment according to yourrequirements, application
experience and feedback from our clients.
Q: How to solve the equipment trouble during using ?
A:Please email us about problem with pictures or a small video will
be better,we will find the problem and solve it. If broken, we will
send you a new free part if in the warranty period.
